ZH Machine of sieving and filtering

★Shaking screen wire mesh

* Save working,save strength,save electricity,low producing cost.
* The things of sieving out of automatically,can continue working.
* Small covering area,remove and install easily.
* Maintain easily,life-time is long.
* No noisy,no powder flying,decrease pollution.
* Without dead zones,using rate is high.
* The mesh change easily,can change it by yourself.

* One or more layers can both use.

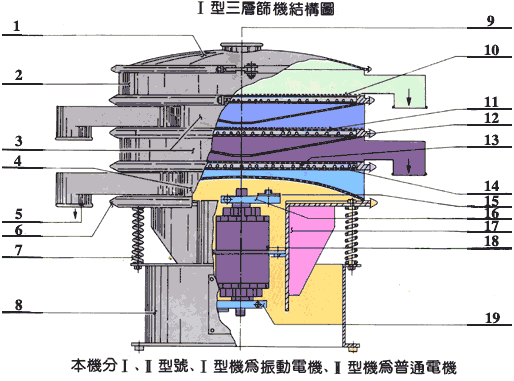

Name of every part of the above picture: ⑴top,⑵up frame,⑶medium frame,⑷down frame,⑸exit (out),⑹tighter ring,⑺spring,⑻base,⑼exit (in),⑽screening mesh,⑾lining mesh,⑿flange,⒀spring ball,⒁spring board,⒂adding heavier board,⒃up eccentric board,⒄electrical machinery base,⒅shaking electrical machine,⒆down eccentric board

Direction of the material flowing	Angle(°)	Characterist	Major uses
	0	By round that raw materials are flowed out all around directly by the centre	Generally grade : It is suitable for the thick particle to use raw materials as a large amount of ones that screen （3 - 20 mesh）
	15	It flow out all around slow swirl by round	Suitable for the angle that the intermediate screen mesh uses （20 - 80 mesh）
	35	Getting longer most one flow out round all around of swirl distance	Grade accurately: Used in detailed network eye or moisture content a many one high to is it contract strength raw materials separate to congeal （80 - 400 mesh）
	90	Raw materials concentrate on the central authorities	This another organic kind of angle, can use it

Model	Specification Diameter (m)	Power	Layer
ZH500	0.5	0.50	1-4
ZH800	0.8	0.50	1-4
ZH1000	1.0	1.10	1-4
ZH1200	1.2	1.15	1-4
ZH1500	1.5	1.50	1-3
ZH1800	1.8	2.20	1-3
ZH2000	2.0	3.70	1-3

1、Chemical Industry：Industrial chemicals,chemicals,solvent,washing powder,etc..
2、Plastic Industry：PVC powder,weaving linking,the color mother makes one,plastic mixture etc.
3、Paint IndustryPaint,emulsion,pigment,aluminium lotion,etc.
4、Abrasive Industry：
Corundum,chemicals,carbide,grinding the sand,refractory material ,etc..
5、Brewing Industry：And then make but sex sodium,saccharomycete,dregs of rice bits,malt,barley,etc..
6、Environ ment protecting：Sewage,excrement urine deal with,add wastes,etc. of knocking off etc..

7、Rubber Industry
Solvent,rubber cream,milk lotion,chemicals ,etc.
8、Feeding Industry
Fish meal,bone meal,various kinds of food grains other than rice and wheat,etc.
9、Paper Manufacturing
Paper pulp,weaving and linking separating,papermaking raw materials etc.
10、Kiln Industry：Clay,mud,ceramic thick liquid,etc.
11、Food Industry：Grain processing,tea,milk product,beans dairy products,starch,edible oil.
12、Mining Industry：Coal,sand,iron powder,aluminium powder,zinc powder,etc.
